LDAP

Let directory users sign in with their own password, and give them roles through their directory groups

How it works
Settings
Groups
Mapping to roles
Several directories
Testing the connection
Active Directory example
OpenLDAP example
Common pitfalls

How it works

AnsibleForms connects to the directory with a bind account, searches the user, and then binds as that user to check the password:

The user signs in with username and password. When no local user has that name, LDAP is tried.
AnsibleForms binds with the bind account of the directory’s credential, and searches Search Base for an entry whose Username Attribute equals the username.
It binds as the entry that was found, with the password that was typed.
The groups are read from the entry (or from a group search), filtered, and prefixed with ldap/.

A username in UPN form (jdoe@example.com) that finds no user is retried once with the part before the @, so users can sign in with either form even when the Username Attribute holds the short name. A wrong password is never retried.

One set of settings serves Active Directory, OpenLDAP and others; from 7.3.0 there can be several directories.

Settings

From 7.3.0 the settings are per directory. Access > LDAP lists the directories, in the order a bare username is looked up:

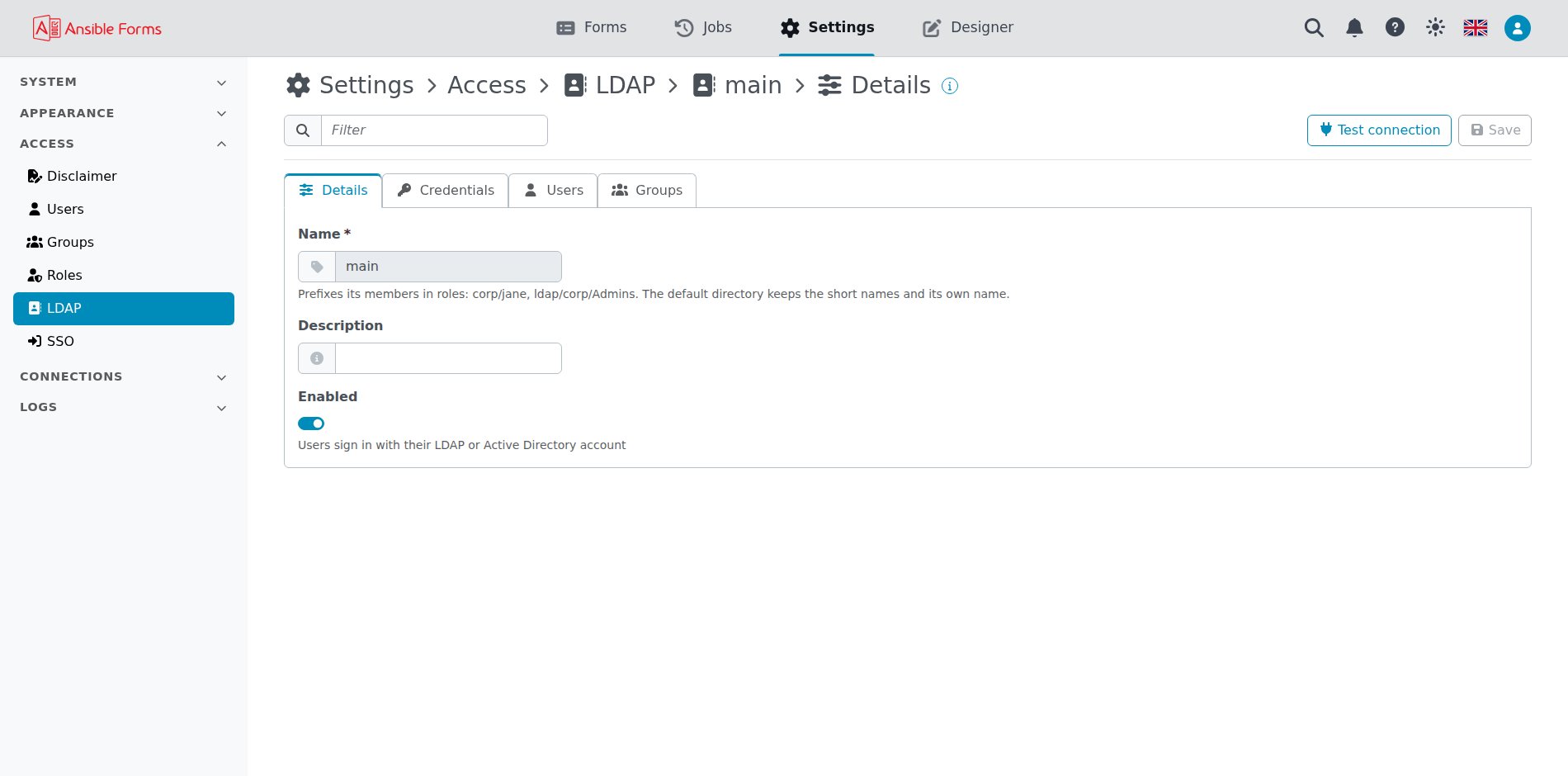

Access > LDAP

Row menu	What it does
Edit	Opens the directory’s page
Test connection	Tries a login with a test username and password, see Testing the connection
Enable, Disable	Turns the directory on or off; `main` is turned off rather than deleted
Move up, Move down	Changes its place in the lookup order
Delete	Removes the directory; shown but disabled on `main`

Adding a directory asks its fields in four steps, the tabs of its page. Details holds Enabled, the Name and a Description:

Tab	Setting	Meaning
Credentials	Credential	Required. An `ldap` credential of Connections > Credentials, which holds the connection, see below
Users	Search Base	DN where the user search starts, e.g. `OU=Users,DC=example,DC=com`. Subtrees are searched too
Users	Username Attribute	Attribute matched against the login name: `sAMAccountName` in AD (the default), `uid` in OpenLDAP
Users	Mail Attribute	Attribute holding the email address, usually `mail`
Users	Sign-in domains	Domains whose `user@domain` sign-ins go straight to this directory, see Several directories
Groups	Groups Attribute	Attribute of the user entry that holds the groups (`memberOf`, the default), or `groups` with a group search
Groups	Groups Search Base	DN where the group search starts
Groups	Group Class	objectClass of the groups, e.g. `group`, `groupOfNames` or `posixGroup`
Groups	Group Member Attribute	Attribute of a group that lists its members, e.g. `member`, `uniqueMember` or `memberUid`; default `member`
Groups	Group Member User Attribute	Attribute of the user that those member values hold, e.g. `dn` or `uid`; default `dn`
Groups	Group Filter	Regular expression; only the groups whose name matches are kept. Empty keeps every group

The defaults of the last three group fields apply only when the group search is used, see the next section.

The ldap credential holds how the directory is reached and as whom it searches:

Field	Meaning
Servers	One per field, as `host`, `host:port` or `ldaps://host:port`, tried in this order: when one cannot be reached, the next one is
Port	`389` for plain LDAP, `636` for LDAPS
Enable TLS	Connect with LDAPS (`ldaps://`). StartTLS on port 389 is not supported
Ignore certs	Skip the validation of the server certificate. Shown only with Enable TLS
Certificate	The client certificate AnsibleForms presents to the servers, in PEM, when the certificates are checked
CA bundle	The CA certificate(s) that signed the server certificate, in PEM, when the certificates are checked
Bind user DN	The DN of the service account that searches the directory
Bind user password	Its password, stored encrypted or read from a secret store

Only an admin can add or change an ldap credential, see Who may change a credential. Up to 7.2.0 the servers, TLS and bind account were fields of the LDAP settings. The upgrade to 7.3.0 moves them into a credential, see Addresses in credentials:

The directory before the upgrade	Where its servers go
Its own bind DN and password, no credential	A new `ldap` credential named `<directory>-ldap`, such as `main-ldap`
A credential without servers	Into that credential
A credential that already holds other servers	A copy of the credential named `<credential>-<directory>`, which the directory then names

A name that is taken gets -2, -3 and so on. A directory from the config seed is left as it is: the seed owns it.

Groups

The groups come from one of two places, and the Groups Attribute decides which one is used:

An attribute of the user entry, usually memberOf. This is the common setup for Active Directory, and for OpenLDAP with the memberof overlay.
A group search, for directories without memberOf. It runs only when Groups Search Base and Group Class are both set: AnsibleForms then searches for groups of that class whose Group Member Attribute holds the user’s Group Member User Attribute, and stores the result in the attribute groups. Set Groups Attribute to groups to use it.

With Groups Attribute memberOf, a configured group search runs but its result is not used for the roles.

Each group is a DN, and AnsibleForms keeps its first CN: CN=AF-Admins,OU=Groups,DC=example,DC=com becomes AF-Admins. The Group Filter is then applied to that name, and the remaining groups get the ldap/ prefix: ldap/AF-Admins.

In large directories the filter keeps tokens and jobs small; an invalid regular expression keeps all groups and is logged.

Mapping to roles

In config.yaml, an LDAP group is ldap/<group CN> and an LDAP user is ldap/<username>, both case sensitive:

roles:
  - name: admin
    groups:
      - local/admins
      - ldap/AF-Admins
  - name: operator
    groups:
      - ldap/AF-Operators
    users:
      - ldap/jdoe

The username is the value of the Username Attribute as the directory returns it, not as the user typed it. See Roles for the role options.

Several directories

From 7.3.0 there can be several directories, each with its own servers, users and groups. Their names tell their members apart:

Directory	Username	Groups	In a role
`main`	`jdoe`	`ldap/AF-Admins`	`ldap/jdoe`, `ldap/AF-Admins`
Any other, such as `corp`	`corp/jdoe`	`ldap/corp/AF-Admins`	`ldap/corp/jdoe`, `ldap/corp/AF-Admins`

A user names the directory at sign-in as corp\jdoe or corp/jdoe, or signs in with an address of a domain the directory owns. A bare username is tried in every enabled directory, in their order, and so is a name such as other\jdoe when no directory is named other: it is then looked up as typed.

The first directory that knows the user decides: a wrong password there is the answer, and the next directory is not tried, since it might hold someone else of that name. A directory that cannot be reached is skipped.

The directory named default up to 7.2.0 is named main from 7.3.0: the upgrade renames it, and a new installation starts with main. Its members keep their short names, so the roles that name them need no change. The main directory cannot be renamed, and a directory name holds only letters, digits, - and _.

Testing the connection

Test connection asks for a test username and password, and tries a login with the settings on the screen, saved or not. On success it shows the user’s directory entry, which tells you the exact attribute names and group DNs to use.

A test user that does not exist still reports success: the connection and the bind account work, only the user is not found. Typical errors:

Message	Cause
`Bad server or port (connection failed)`	The host name does not resolve or the port is not reachable.
`Wrong binding credentials`	The bind DN or password of the directory’s credential is wrong.
`Unable to verify the certificate`	The server certificate is not signed by the credential’s CA bundle.
`Certificate is not valid`	The credential’s Certificate or CA bundle does not hold a valid PEM certificate.

Active Directory example

This example connects to two domain controllers over LDAPS and keeps only the groups whose name starts with AF-:

Setting	Value
Credential > Servers	`dc01.example.com`, then `dc02.example.com`
Credential > Port	`636`
Credential > Enable TLS	on
Credential > Ignore certs	off, with a client certificate and the CA chain of the enterprise CA
Credential > Bind user DN	`CN=svc-ansibleforms,OU=Service Accounts,DC=example,DC=com`
Search Base	`OU=Users,DC=example,DC=com`
Mail Attribute	`mail`
Username Attribute	`sAMAccountName`
Groups Attribute	`memberOf`
Group Filter	`^AF-`

Members of CN=AF-Operators,… match roles with ldap/AF-Operators, and sign in as jdoe or jdoe@example.com.

OpenLDAP example

This example uses a group search on groupOfNames entries, so it works without the memberof overlay:

Setting	Value
Credential > Servers	`ldap.example.com`
Credential > Port	`636`
Credential > Enable TLS	on
Credential > Bind user DN	`cn=readonly,dc=example,dc=com`
Search Base	`ou=people,dc=example,dc=com`
Mail Attribute	`mail`
Username Attribute	`uid`
Groups Attribute	`groups`
Groups Search Base	`ou=groups,dc=example,dc=com`
Group Class	`groupOfNames`
Group Member Attribute	`member`
Group Member User Attribute	`dn`

A user listed in cn=af-admins,ou=groups,dc=example,dc=com gets the group ldap/af-admins. For posixGroup groups, use Group Member Attribute memberUid and Group Member User Attribute uid.

With the memberof overlay, leave the group search fields empty and set Groups Attribute to memberOf.

Common pitfalls

Most LDAP problems come down to one of these:

A local user with the same name. Local users are checked first, so the directory is never asked for that name.
No groups, or the wrong ones. The Groups Attribute must exist (groups with a group search); memberOf skips nesting.
Group names that do not match. Use ldap/<CN> in the same case, and check the Group Filter keeps the group.
Group DNs that do not start with a CN. Only the first CN= value is used as the group name, so every group DN must start with CN= (or cn=).
Certificates. TLS needs both certificate fields of the credential and a matching server name; Ignore certs is for testing only.
Settings that cannot be saved. When a directory comes from the config seed, its page is read-only: change the seed file instead.

A failed login shows a generic message. The reason is logged by the server and kept in the audit log, and for Active Directory it is translated from the directory’s code, e.g. Wrong password, Account locked or Password expired.
